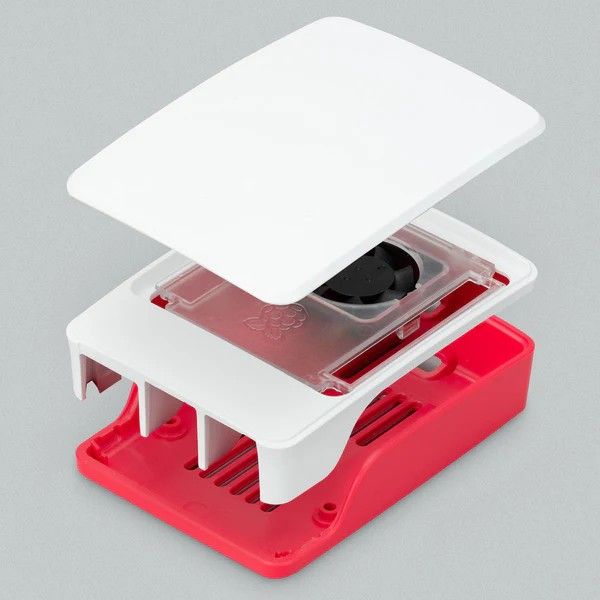

Raspberry Pi 5 Official Case with Fan (Red)

LinkCore

Raspberry Pi 5 Official Case with Fan (Red)
  • Raspberry Pi 5 Official Case with Fan (Red)_img_0

Raspberry Pi 5 Official Case with Fan (Red)

Out of stock
1,500 BDT
sold_units 50
1
No more items remaining!

It includes an integrated variable-speed fan that's as clever as it is cool, which plugs into the dedicated connector on your Pi 5 board.


The official case is now available in two colour ways: Raspberry Pi's signature red-and-white livery and a super swish black and grey option.


Features

  1. Integrated, temperature-controlled cooling fan that connects to the fan connector on Raspberry Pi 5
  2. 2mm × 17mm × 4mm heatsink with self-adhesive pad improves heat transfer from the processor
  3. Easily removable lid exposes fan and breakout slot for cables and GPIO
  4. Integrated mounting features allow for case stacking
  5. HATs can be mounted to the enclosure with stand-offs and GPIO header extenders
  6. (not included)
  7. Four silicone feet for the case are included


Specification

  1. Input voltage: 5V DC supplied via four-pin fan header on Raspberry Pi 5
  2. Fan speed control: Pulse width modulation control with tachometer
  3. Maximum airflow: 2.79 CFM
  4. Maximum fan speed: 8000 RPM +/- 15%
  5. Case material: ABS (base, frame, lid) and PC (fan assembly)
