Raspberry Pi 5 Official Case with Fan (Black)

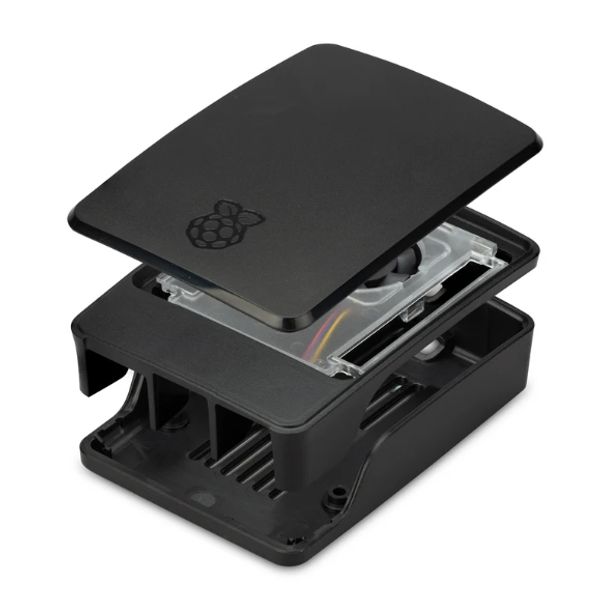

The official Raspberry Pi Case for Raspberry Pi 5 is a clip-together four-part enclosure with an active cooling fan.
LinkCore
Category List
All products

It includes an integrated variable-speed fan that's as clever as it is cool, which plugs into the dedicated connector on your Pi 5 board.
The official case is now available in two colour ways: Raspberry Pi's signature red-and-white livery and a super swish black and grey option.
Features
- Integrated, temperature-controlled cooling fan that connects to the fan connector on Raspberry Pi 5
- 2mm × 17mm × 4mm heatsink with self-adhesive pad improves heat transfer from the processor
- Easily removable lid exposes fan and breakout slot for cables and GPIO
- Integrated mounting features allow for case stacking
- HATs can be mounted to the enclosure with stand-offs and GPIO header extenders
- (not included)
- Four silicone feet for the case are included
Specification
- Input voltage: 5V DC supplied via four-pin fan header on Raspberry Pi 5
- Fan speed control: Pulse width modulation control with tachometer
- Maximum airflow: 2.79 CFM
- Maximum fan speed: 8000 RPM +/- 15%
- Case material: ABS (base, frame, lid) and PC (fan assembly)
Raspberry Pi 5 Official Case with Fan (Black)
Out of stock1,500 BDT
sold_units 40
1
No more items remaining!It includes an integrated variable-speed fan that's as clever as it is cool, which plugs into the dedicated connector on your Pi 5 board.
The official case is now available in two colour ways: Raspberry Pi's signature red-and-white livery and a super swish black and grey option.
Features
- Integrated, temperature-controlled cooling fan that connects to the fan connector on Raspberry Pi 5
- 2mm × 17mm × 4mm heatsink with self-adhesive pad improves heat transfer from the processor
- Easily removable lid exposes fan and breakout slot for cables and GPIO
- Integrated mounting features allow for case stacking
- HATs can be mounted to the enclosure with stand-offs and GPIO header extenders
- (not included)
- Four silicone feet for the case are included
Specification
- Input voltage: 5V DC supplied via four-pin fan header on Raspberry Pi 5
- Fan speed control: Pulse width modulation control with tachometer
- Maximum airflow: 2.79 CFM
- Maximum fan speed: 8000 RPM +/- 15%
- Case material: ABS (base, frame, lid) and PC (fan assembly)
